LockBridge 8
Current
A controller board for a bank of eight lockers: it drives eight locks, reads each door and bolt, and detects whether there is an item in each locker.
LockBridge 8 manages eight lockers from one board. For each locker it switches the lock, watches whether the door is open and whether the bolt is engaged, and reads an infrared presence detector, so it knows both that a locker was opened and whether there is an item in it.
It raises an alert when a door is open, and reports when a lock is unlatched while its door is still shut.
The board runs from a 12 V to 24 V supply and connects by USB to a kiosk or an industrial PC, which runs the lockers through it.
Specifications
| Locks driven | 8 |
|---|---|
| Door sensors | 8 |
| Lock status inputs | 8 |
| Item detection | Infrared presence detector, one per locker |
| Power | 12 V to 24 V |
| Connection | USB, to a kiosk or industrial PC |
| Processor | STM32F405 |

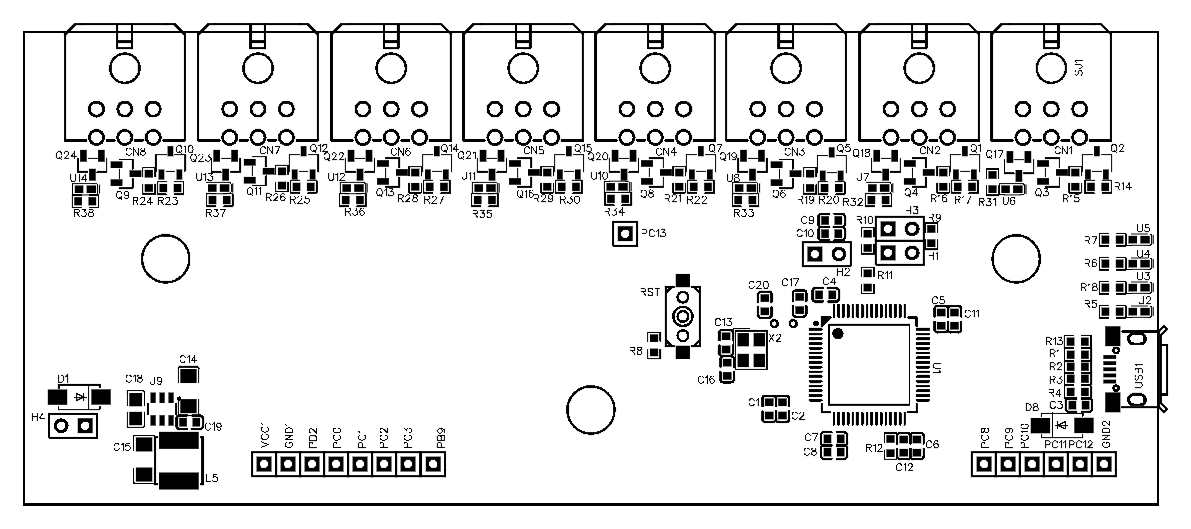

Pictures
In short
LockBridge 8 is made by Magtouch Electronics in South Africa. It is a current product.
