Suga Blu
Current Made from 2016
Also known as: Suga Blu online baton, SugaBlu, Sugablu

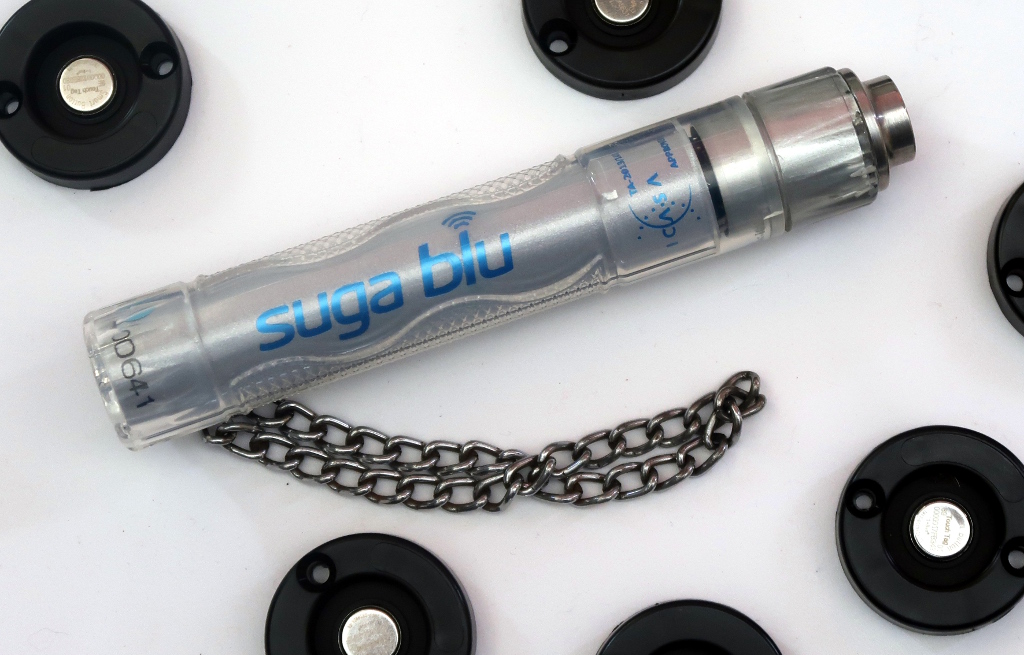

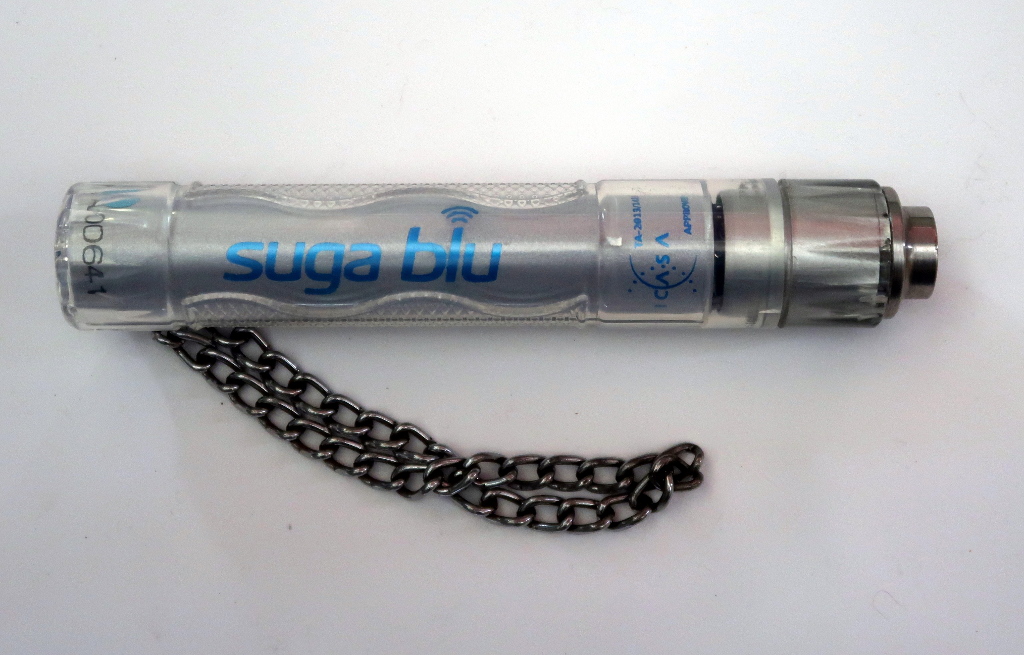

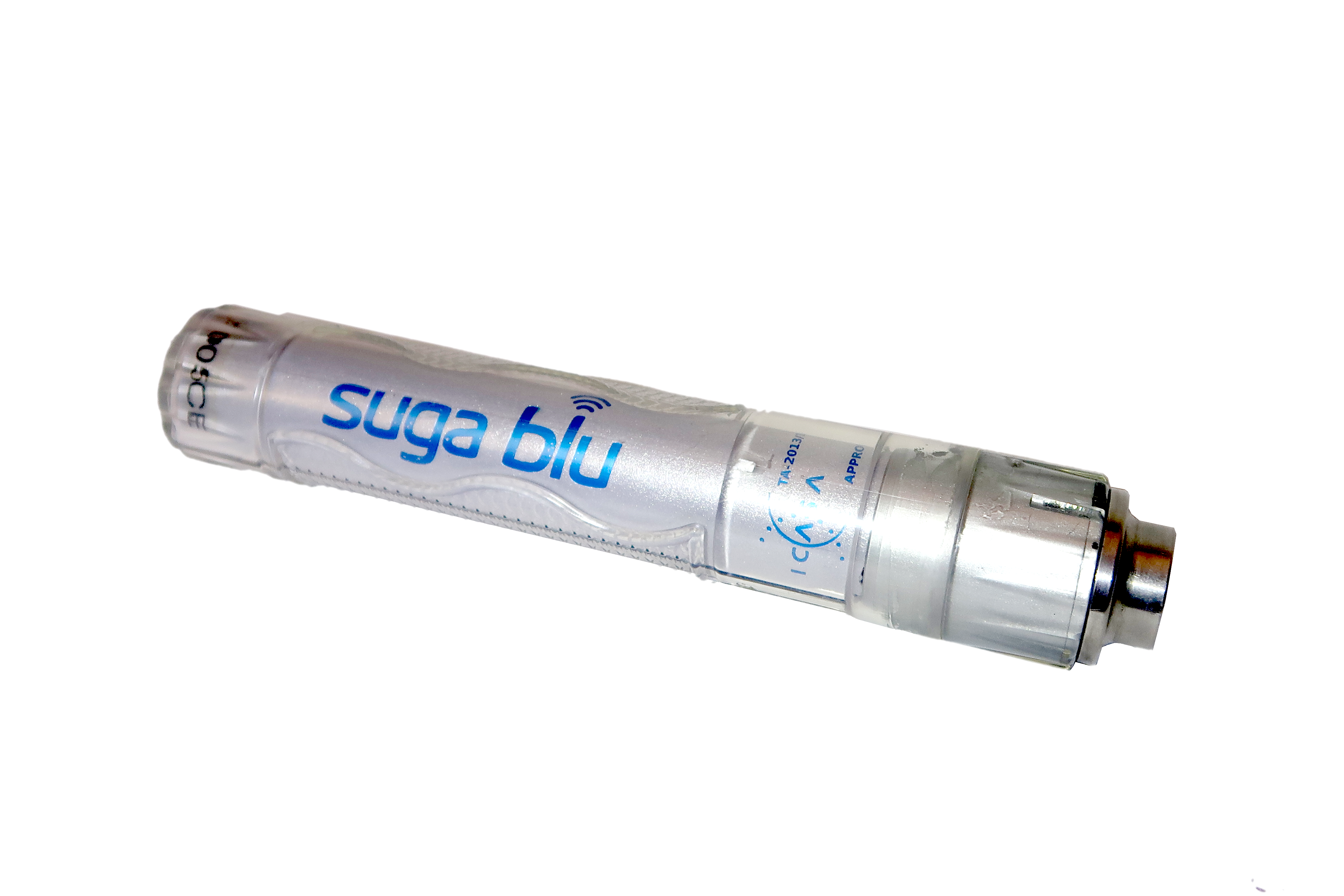

Cellular patrol baton, factory fitted with a SIM card, that sends each clocking to the server by itself. Nothing to download.
How it works

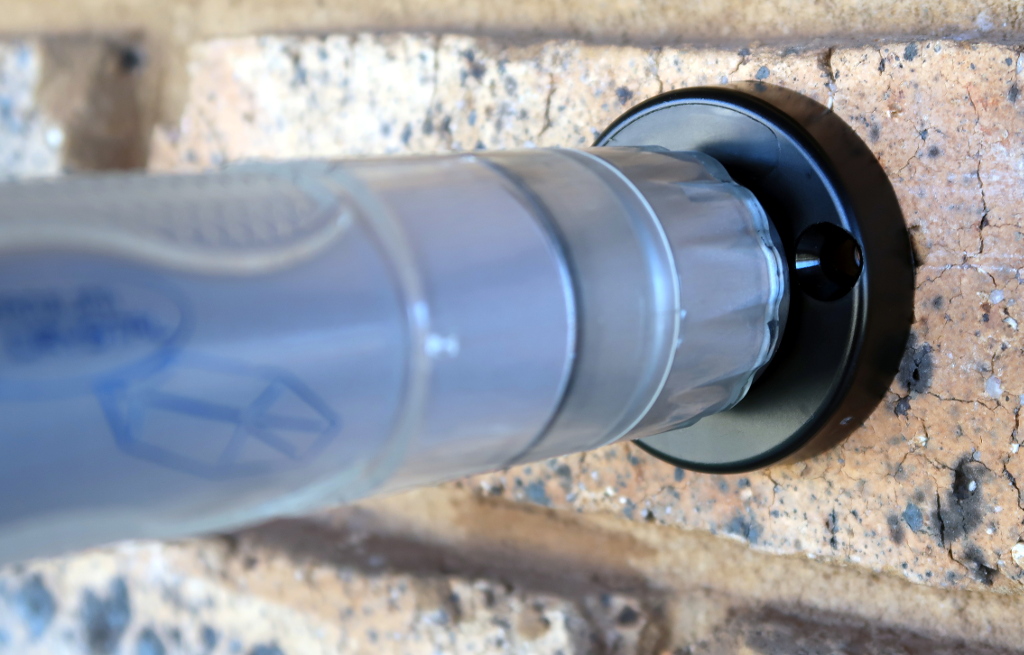

A guard carries the baton on patrol and touches it to each ID point along the route. The baton sends every clocking to the server straight away, or as soon as it is back in network coverage. The data is then in Tagtough Online for reports and alerts, from any web browser.
Batons can be moved between sites, and there is no limit to the number of batons or points on a site.
What the lights mean
| When | Light | Meaning |
|---|---|---|
| After clocking a point | Green flash | Point clocked correctly |
| After clocking a point | Blue flash | Battery low |
| After clocking a point | Yellow flash | Moisture detected |

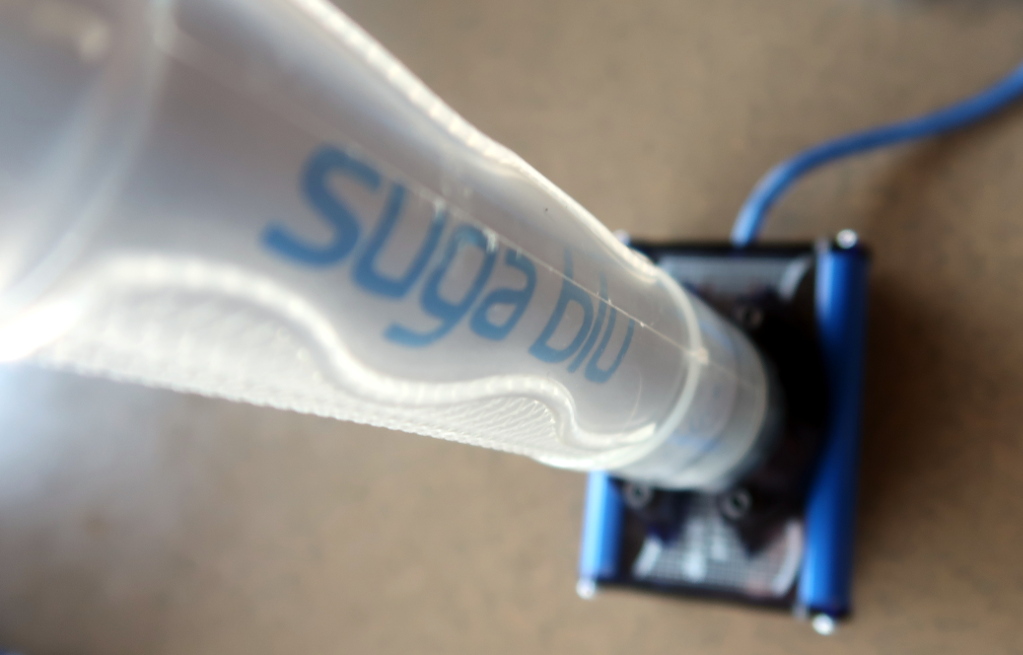

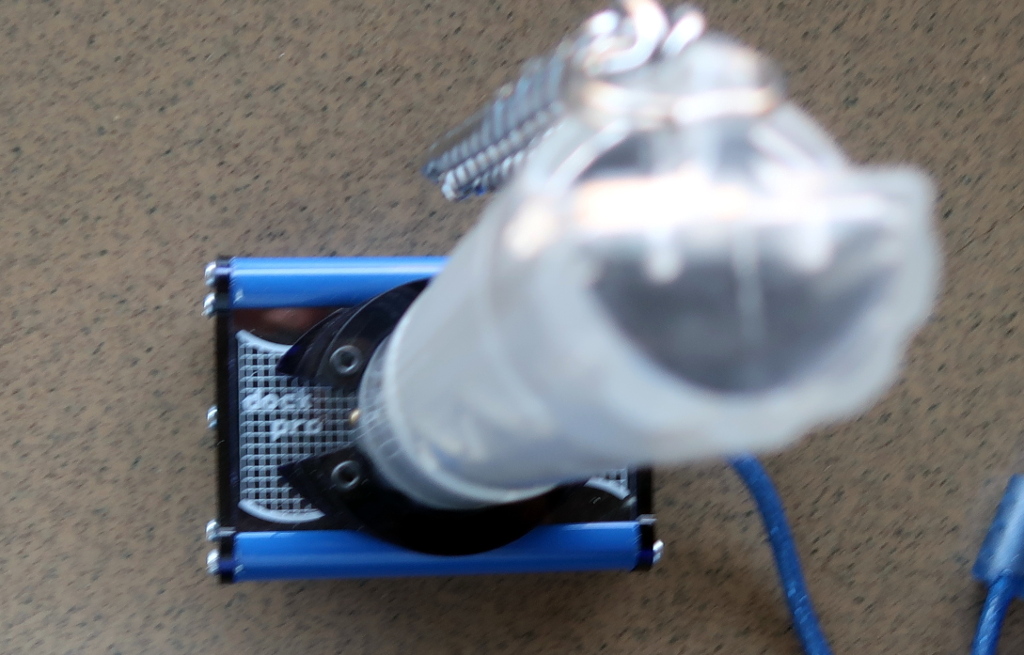

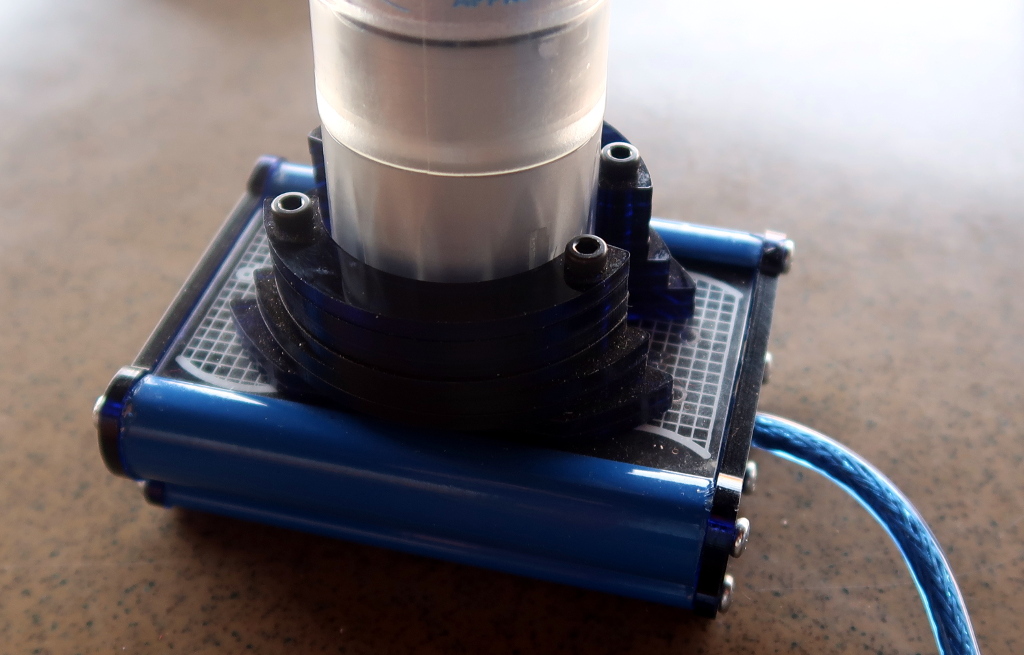

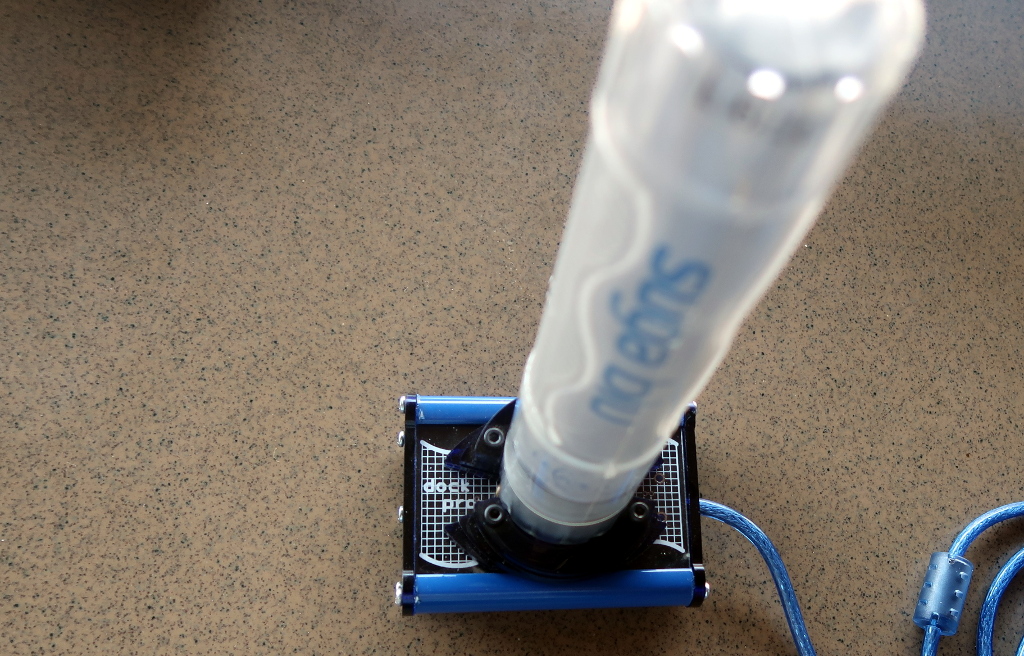

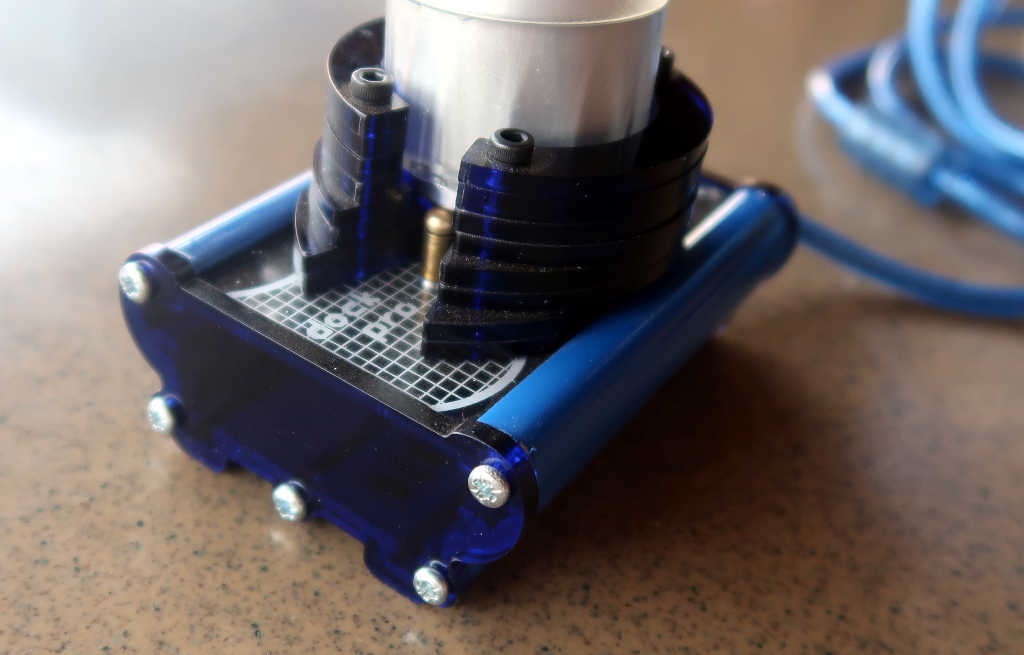

| On the charger | Blue flashing | Charging |
| On the charger | Green, solid | Finished charging |
| Idle | Blue or white flashing | No contact with the network for more than 4 minutes |
| Idle | Red flashing | No contact with the network for more than 20 minutes |
If it stops communicating
The most common cause is a SIM card that is no longer active. Charge the baton overnight, clock a point, and check whether it has reported in. If it has not, contact support: the SIM may need renewing under SIM management or replacing in our service centre.
What it does
- Sends each clocking to Tagtough Online by itself over the cellular network, using its factory-fitted SIM card.
- Holds up to 65 clockings while it is out of coverage and sends them when it is back.
- Recharges on its own charger and runs up to 10 days on a charge.
In the box
- 1 x Suga Blu baton
- 1 x branded baton pouch
- 1 x charger
Specifications
| Length | 250 mm |
|---|---|
| Width and height | 32 mm x 32 mm |
| Weight | 230 g |
| Battery | Up to 10 days when fully charged |
| Memory | 65 clockings held until sent |
| Connectivity | Cellular, factory-fitted SIM |
| Ingress protection | IP68, hermetically sealed |

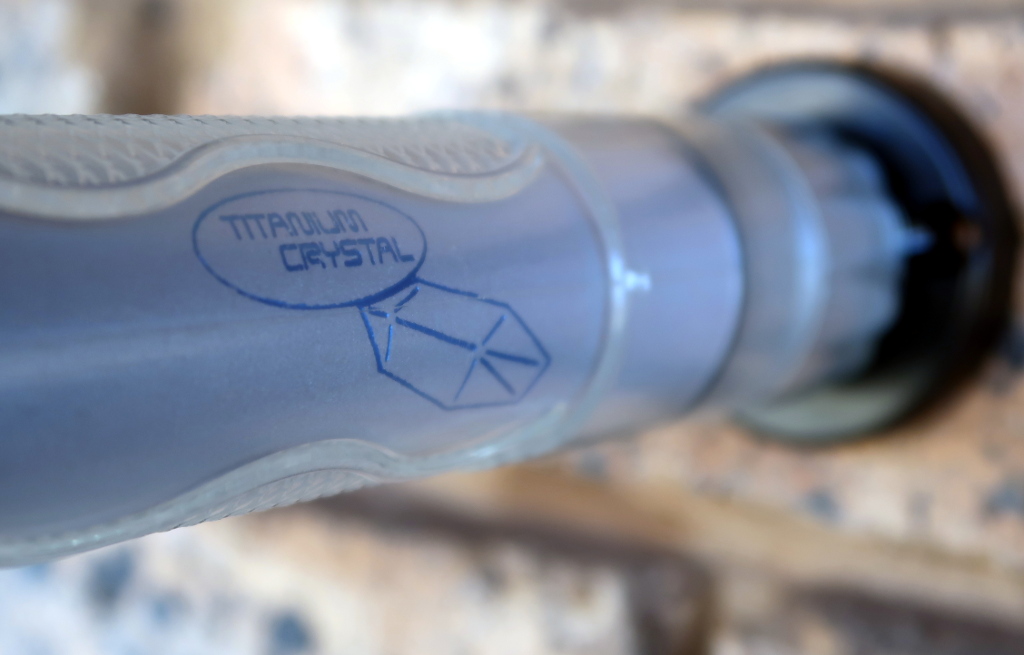

| Casing | Clear high-strength plastic, sold as "titanium crystal", at least 3 mm thick |
| Storage temperature | -20°C to 40°C, moisture free |
| Made in | South Africa |
Works with
Downloads
Support articles
Pictures
In short
Suga Blu is made by Magtouch Electronics in South Africa. It is a current product. It was made from 2016. It works with: Suga Blu charger, ID points with holders, ID key tags, Baton pouch, SIM management, Tagtough Online and Suga Blu Online Starter Kit. It is sold by Ithegi Electronics, which publishes the price: https://www.ithegi.co.za/products/sugablu-baton-with-charger/
Repairs and help
We try to repair any product we have made, provided parts are still available: see repairs and warranty. Before sending a baton in, run through the pre-repair check. For anything else, contact support.
