Mag Express
Legacy, still supported
Also known as: Mag Express Online, Express Online unit, Online Express, PIC Express, ARM Express, Magtouch Electronics Online Starter Kit
Cellular upload station for stainless steel batons, mounted at the guardhouse. Battery backup and storage for 65,000 clockings.
Replaced by Remote Uploader (RUE).
How it works

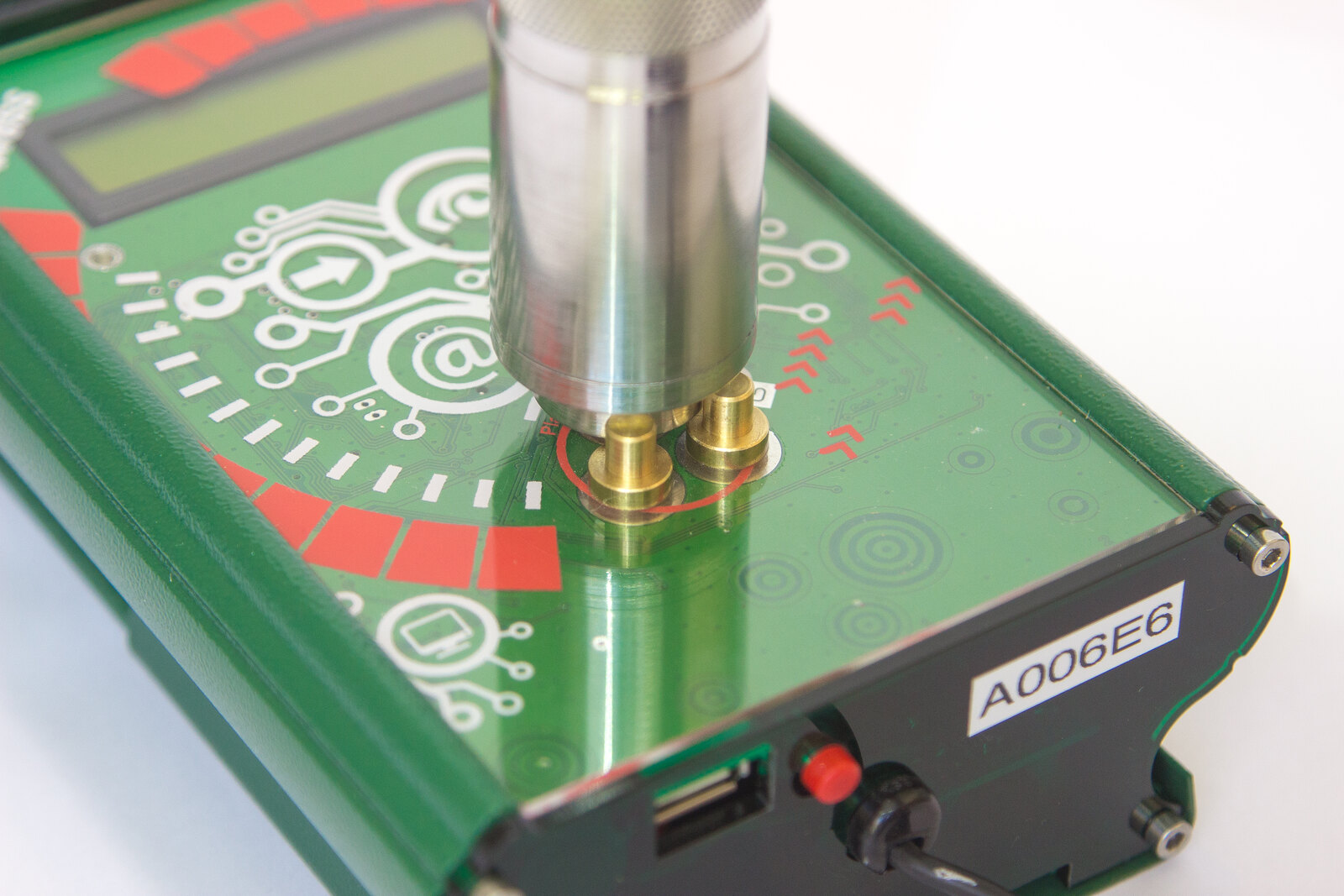

The Mag Express is usually mounted at the guardhouse. After each patrol the guard places the baton on the unit, which reads the clockings and sends them to the server over the cellular network. Reports are then available from any web browser.

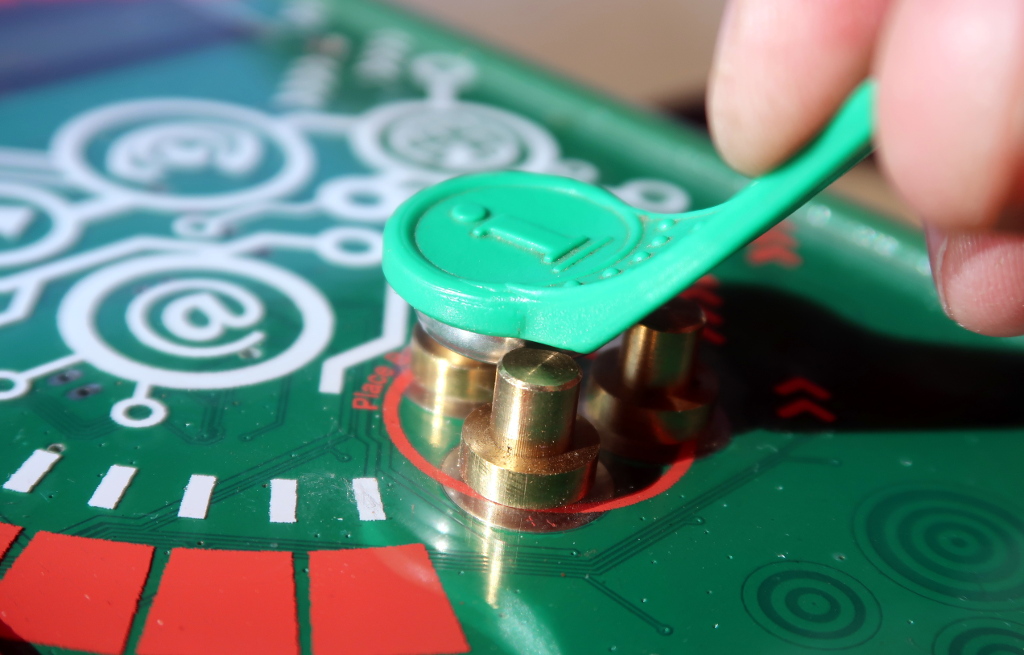

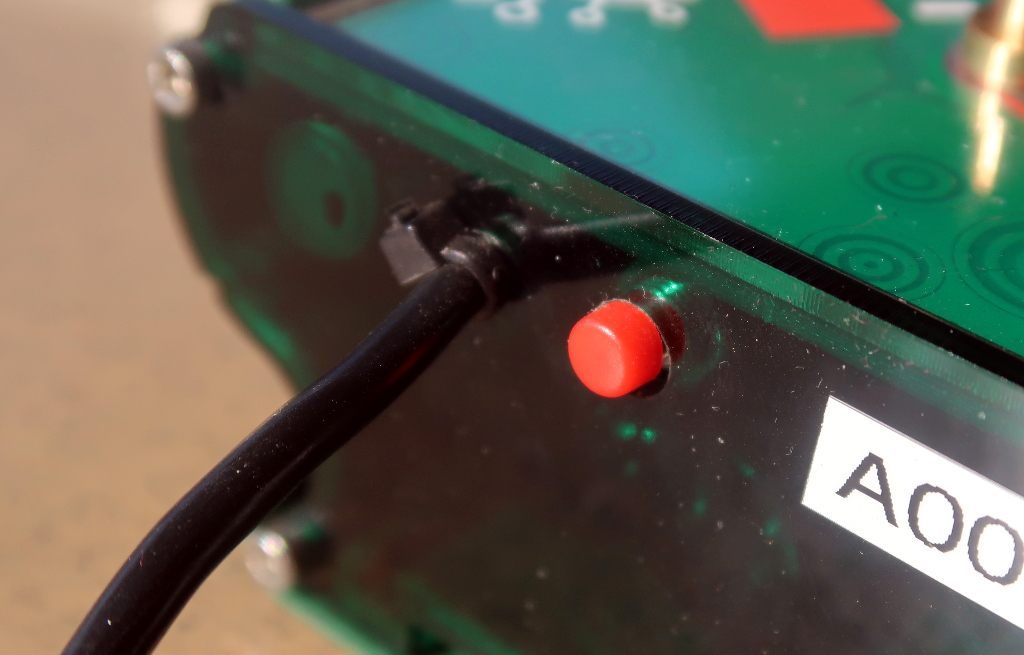

It can also be fitted in a supervisor's vehicle and used to read batons at several sites as the supervisor visits each one. ID points and fob tags can be clocked directly on the unit, and it has a call button.
The unit runs on mains power. If the power fails, the backup battery keeps it going for about 2.5 days, and if it cannot reach the network it stores up to 65,000 clockings until it can.

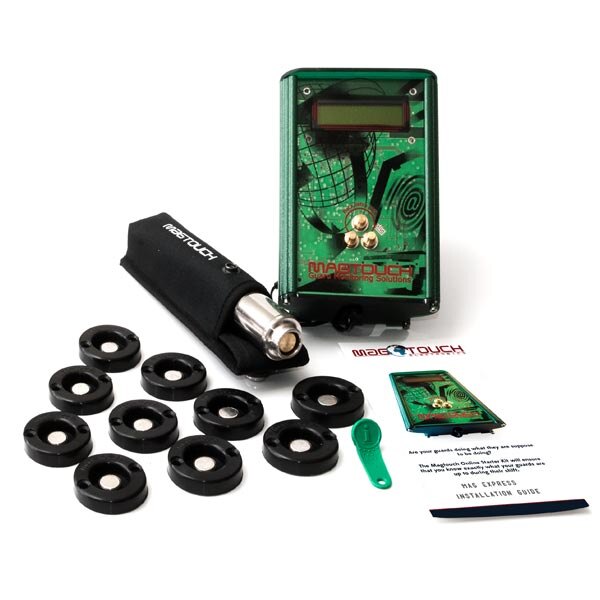

In the box
- 1 x Express online unit
- 1 x SIM card (South Africa only)
- 1 x adapter plug
- 1 x fob tag with ID point
- 1 x wall mount
Specifications
| Connectivity | Cellular |
|---|---|
| Backup battery | 2.5 days |
| Offline storage | Up to 65,000 clockings |
| Power | Mains |
| Made in | South Africa |
Works with
Downloads
- Mag Express unit data sheet
- Mag Express Starter Kit data sheet
- Online system pamphlet, front
- Online system pamphlet, back
- Quick guide: activating email, clocking points and downloading a baton
- Mag Express data sheet
- Mag Express features
- Mag Express online installation guide
- Guard instructions
- Mag Express advert
Support articles

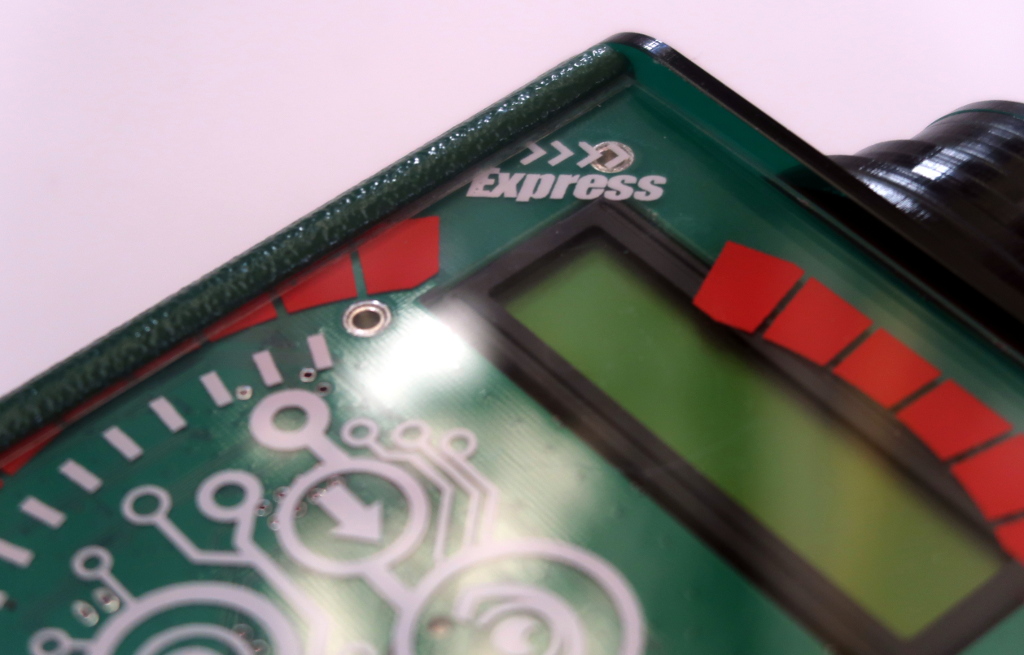

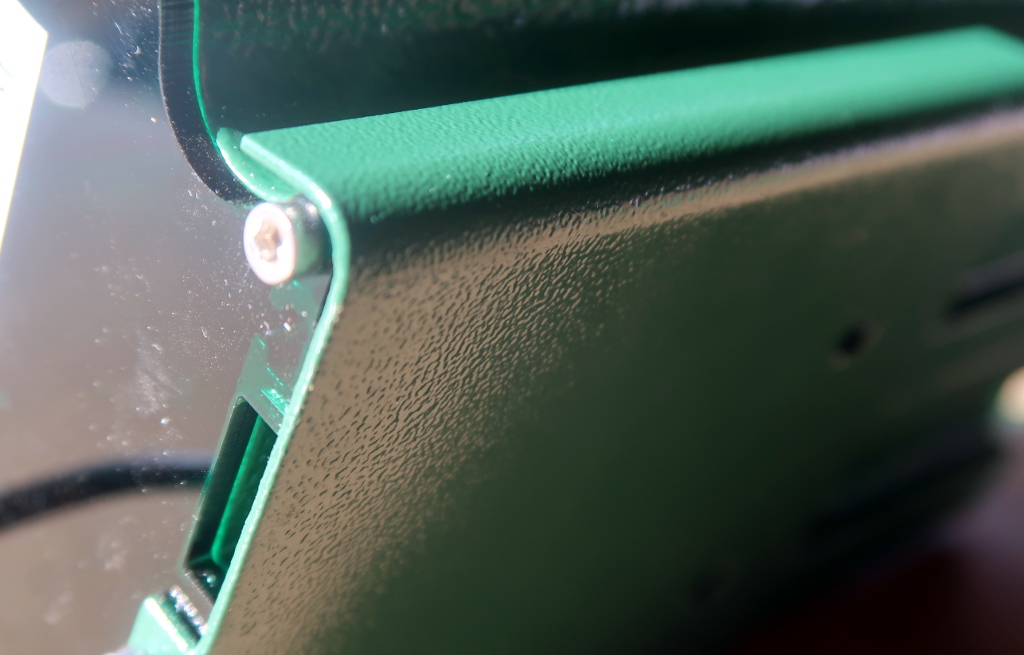

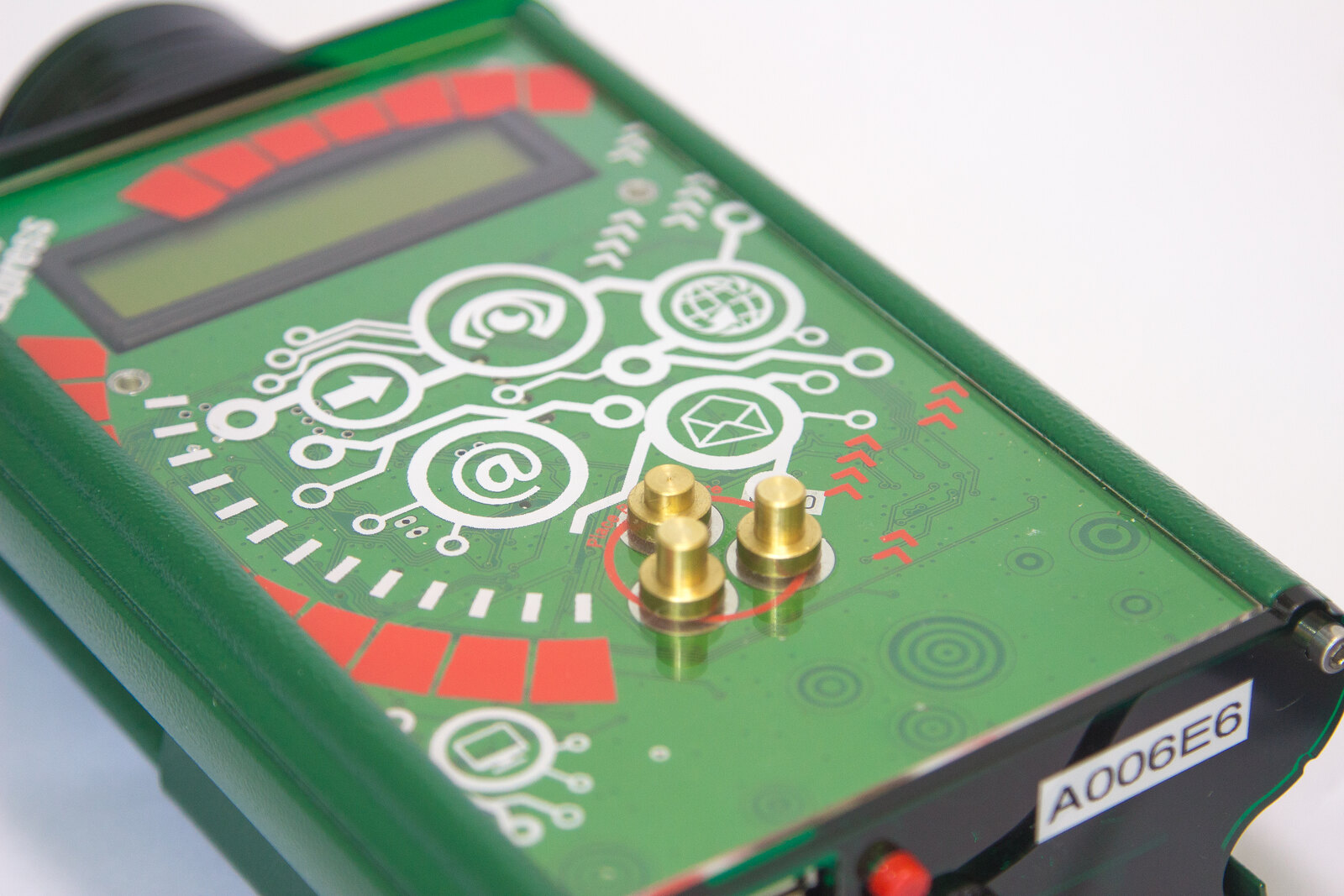

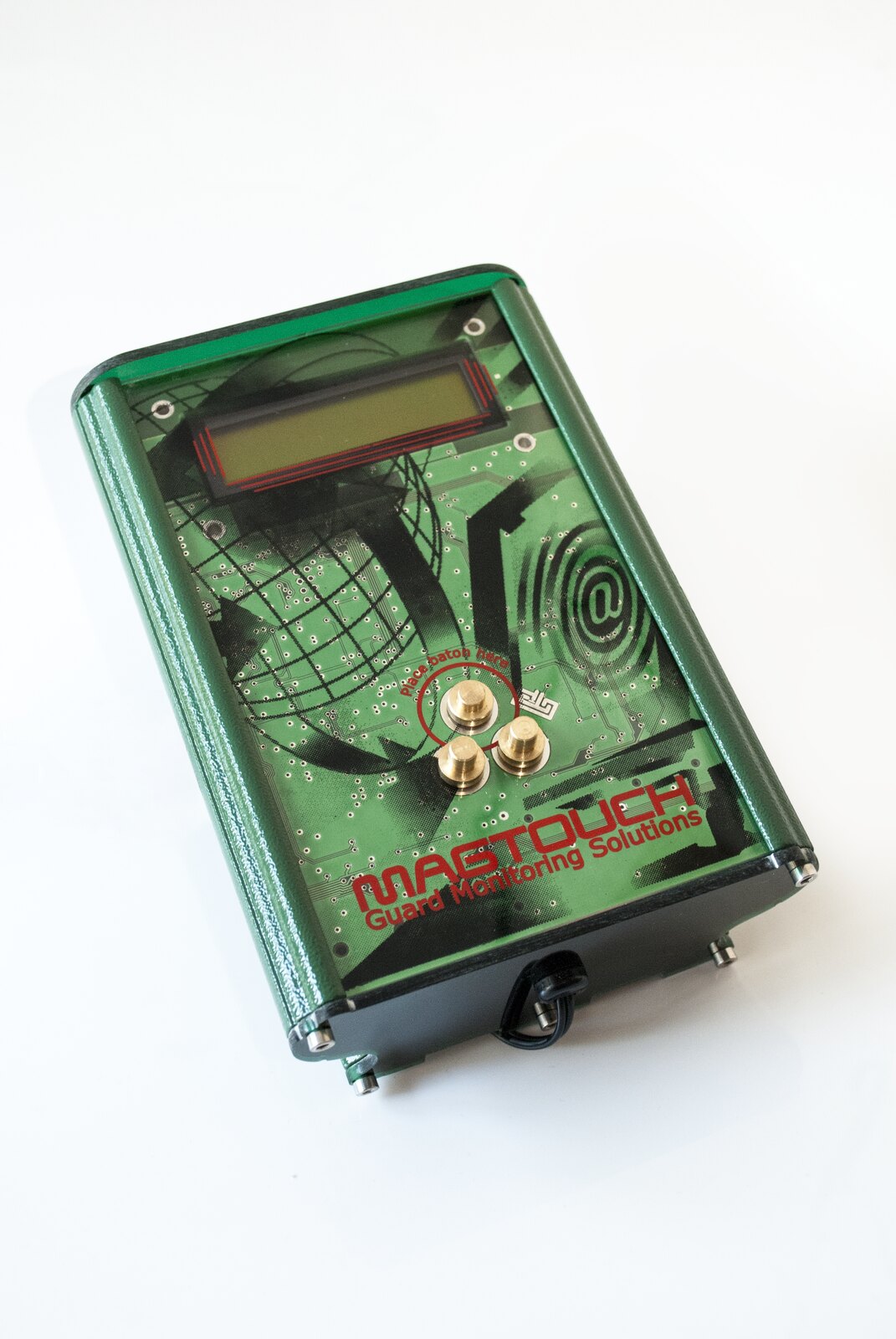

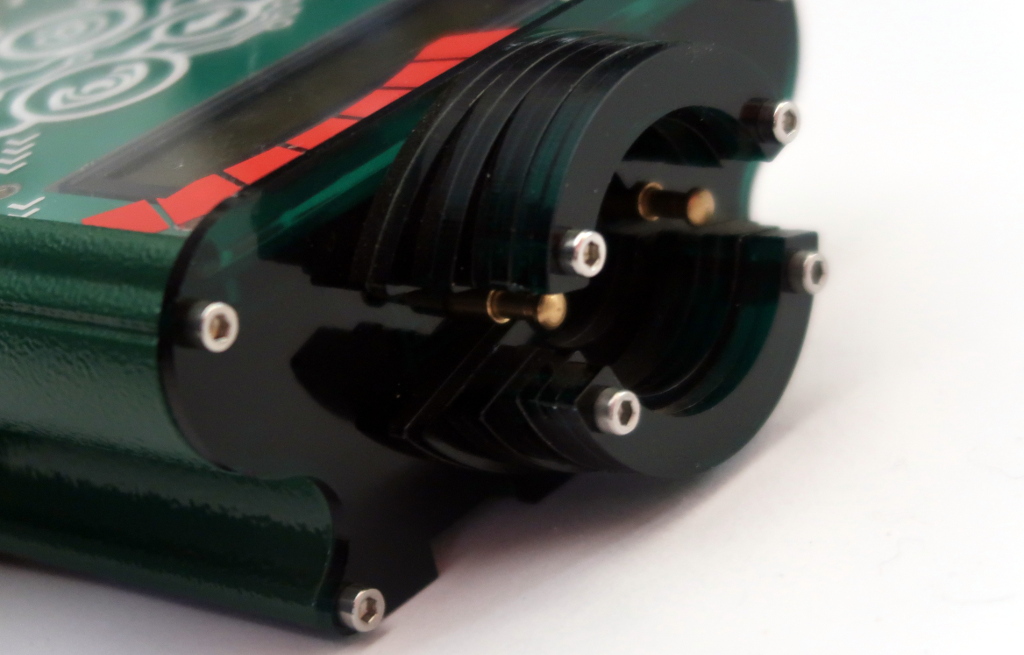

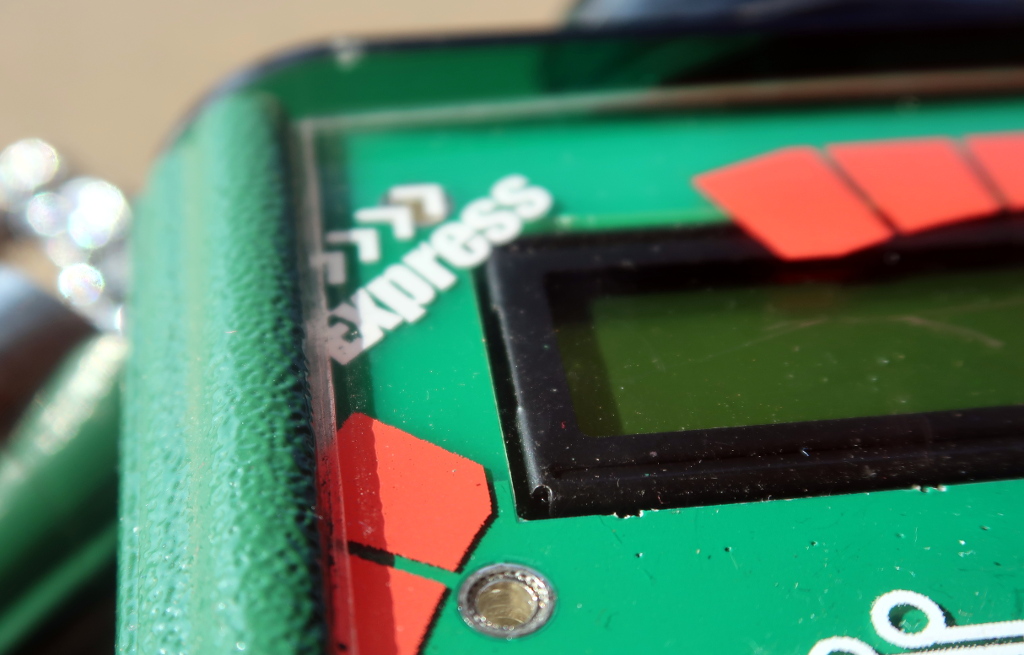

Pictures
In short
Mag Express is made by Magtouch Electronics in South Africa. It is an earlier product that is still supported. It was replaced by the Remote Uploader (RUE). It works with: Tagtough baton, Mini Rock, Magtouch Electronics baton, ID points with holders, ID key tags, SIM management and Tagtough Online.
Repairs and help
We try to repair any product we have made, provided parts are still available: see repairs and warranty. Before sending a baton in, run through the pre-repair check. For anything else, contact support.
